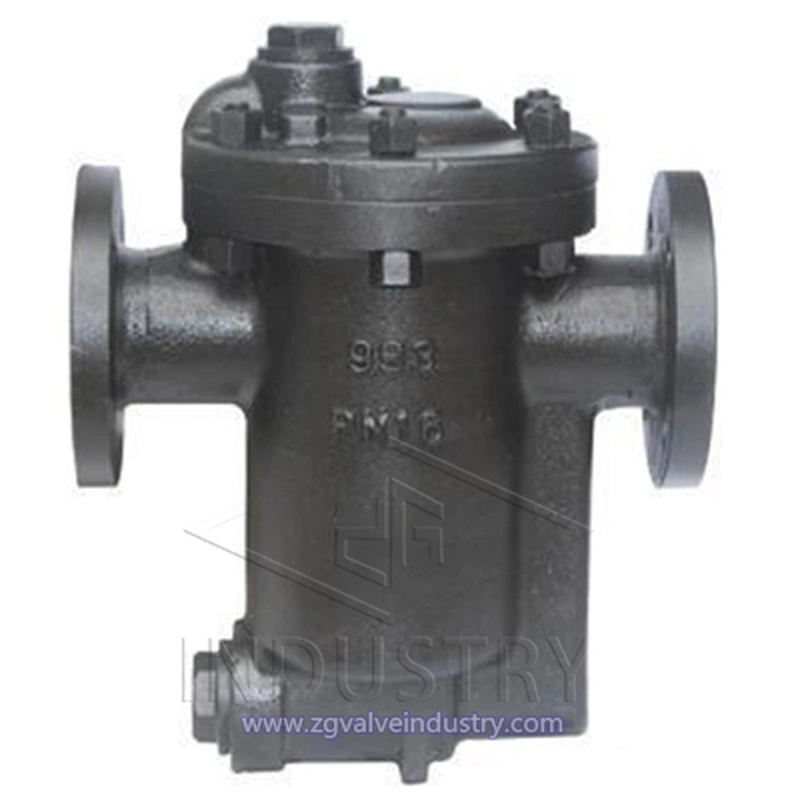

Size Range: 1/2“-3”/DN15-DN80

Pressure: PN16/PN25/PN40

Body Materials: ASTM/A216/WCB

Bonnet Materials: ASTM/A216/WCB

Seat Materials: 2Cr13

Screen Materials: S.S 304

Disc Materials: 2Cr13

Inverted Bucket Materials: S.S 304

Payment: T/T, D/P or L/C

Lead Time:5-30 days

Description

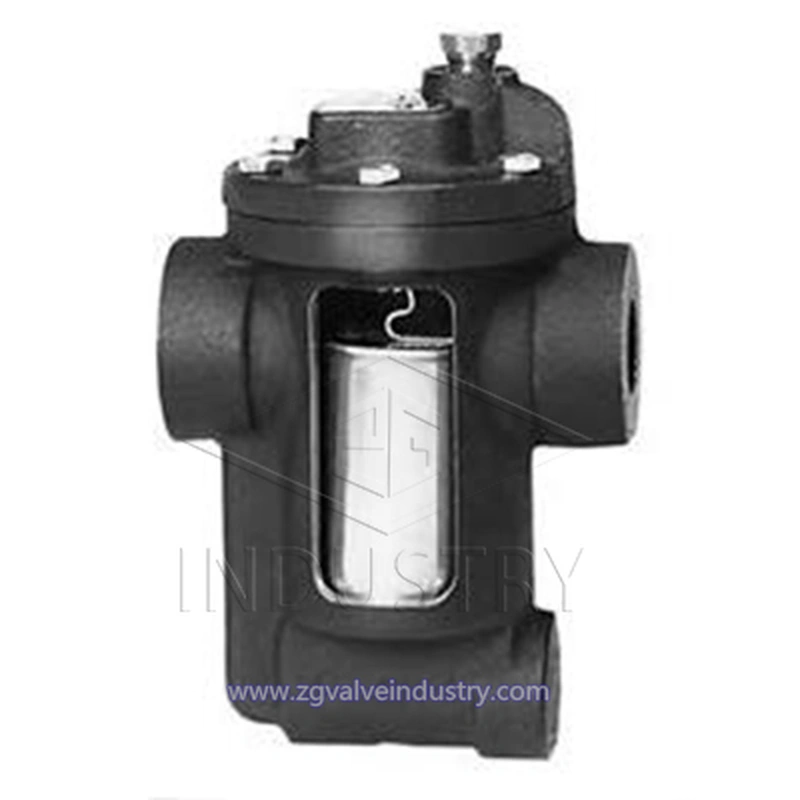

Design Features:

1. All internal moving parts are made of stainless steel, which is resistant to wear and corrosion.

2. As the steam cannot reach the valve seat hole sealed by water, there is no steam loss and high efficiency and energy saving.

3. The floating bucket is inverted, it will not be damaged or crushed, not afraid of water hammer, and has a long life.

4. The top of the inverted barrel is equipped with an exhaust hole, which can continuously exhaust air without air blocking.

5. It is not affected by back pressure and can work normally under high pressure.

6. Reliable work, only two moving parts, lever and inverted barrel, will not cause jamming.

7. The valve seat and valve clack are on the top of the valve, and the valve clack can allow dirt to pass through during the switch, without the influence of dirt disturbing.


Field of Application:

Size Range: 1/2"-3"/DN15-DN80

Temperature:  ≤425℃

Allowable Operating Pressure:PN16/PN25/PN40

Scope of application of trap: steam pipeline, steam equipment, heating pipeline, heating pipeline, condensate pipeline.

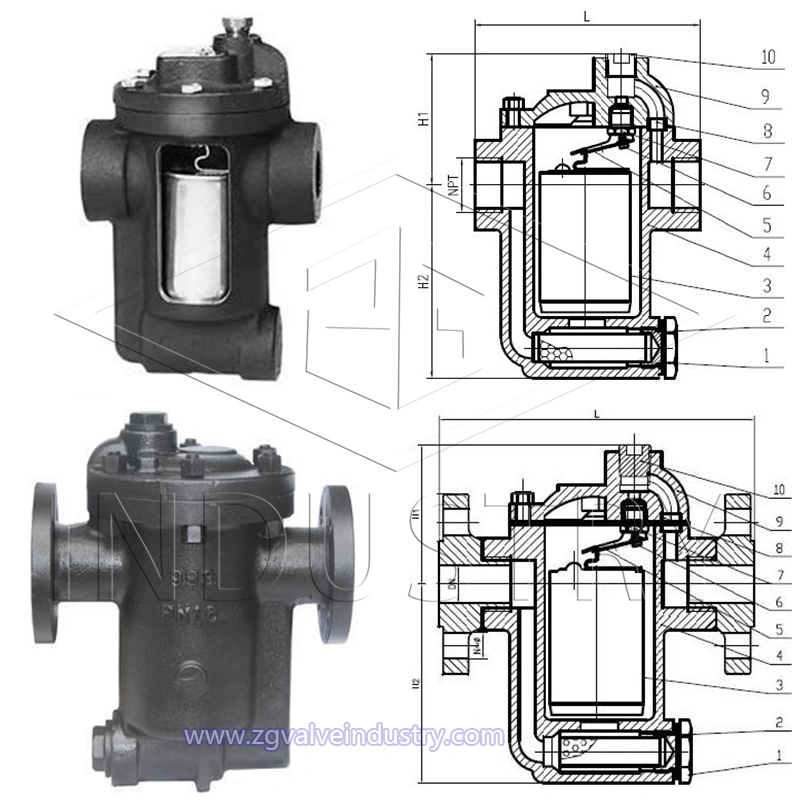

20ss 四合一.jpg

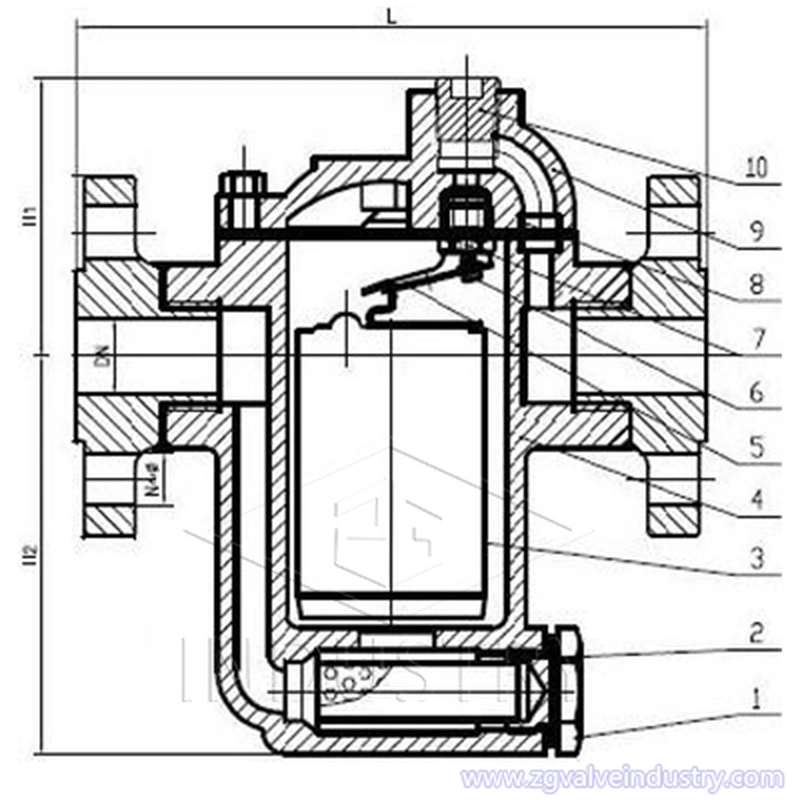

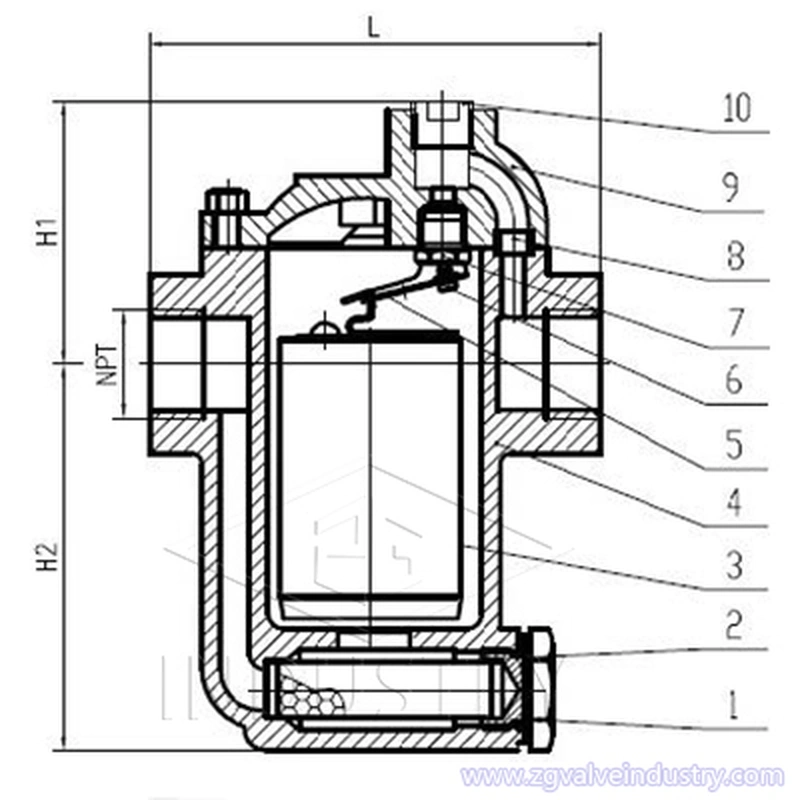

MATERIAL LIST

Part   NameSpecification
BodyASTM A216 WCB
BonnetASTM A216 WCB
Screw Plug35
Seat2Cr13
ScreenS.S 304
Disc2Cr13
Inverted BucketS.S 304
LeverS.S 304
Ring2Cr13


ΔP   KG/CM²
Model No.S880S881/S881FS882/S882FS883/S883FS884/S884FS885/S885FS886F
0.52404208001520250039607190
12804709301750295045008600
22304609301800302045008150
42804109202000305044008800
82803808001560260046008000
93104209001750295049008850
102603656601550255045008450
122003807201730288048509000
142303355601500250030008400
162503506001550260039608650
21
2408641200220034007200
25
2509001300240029007800



Dimensions (mm)

Model No. Size DN Connection Type Maximum Allowable Temp. Dimensions
L H1 H2
S880 1/2",3/4" 15/20 Threaded End NPT/BSP ≤425℃ 128 76 70
S881 1/2",3/4",1" 15/20/25 Threaded End NPT/BSP ≤425℃ 128 76 100
S882 3/4",1",1-1/4" 20/25/32 Threaded End NPT/BSP ≤425℃ 170 94 137
S883 1",1-1/4",11/2" 25/32/40 Threaded End NPT/BSP ≤425℃ 202 120 193
S884 1-1/4",11/2",2" 32/40/50 Threaded End NPT/BSP ≤425℃ 232 150 212
S885 1-1/2", 2" 40/50 Threaded End NPT/BSP ≤425℃ 250 150 248
S881F DN15,20,25 15/20/25 Flanged End (DIN,JIS,ANSI) ≤425℃ 170 76 100
S882F DN20,25,32 20/25/32 Flanged End (DIN,JIS,ANSI) ≤425℃ 210 94 137
S883F DN25,32,40 25/32/40 Flanged End (DIN,JIS,ANSI) ≤425℃ 270 120 193
S884F DN32,40,50 32/40/50 Flanged End (DIN,JIS,ANSI) ≤425℃ 320 150 212
S885F DN40,50 40/50 Flanged End (DIN,JIS,ANSI) ≤425℃ 350 150 248
S886F DN65,80 65/80 Flanged End (DIN,JIS,ANSI) ≤425℃ 400 489 310
