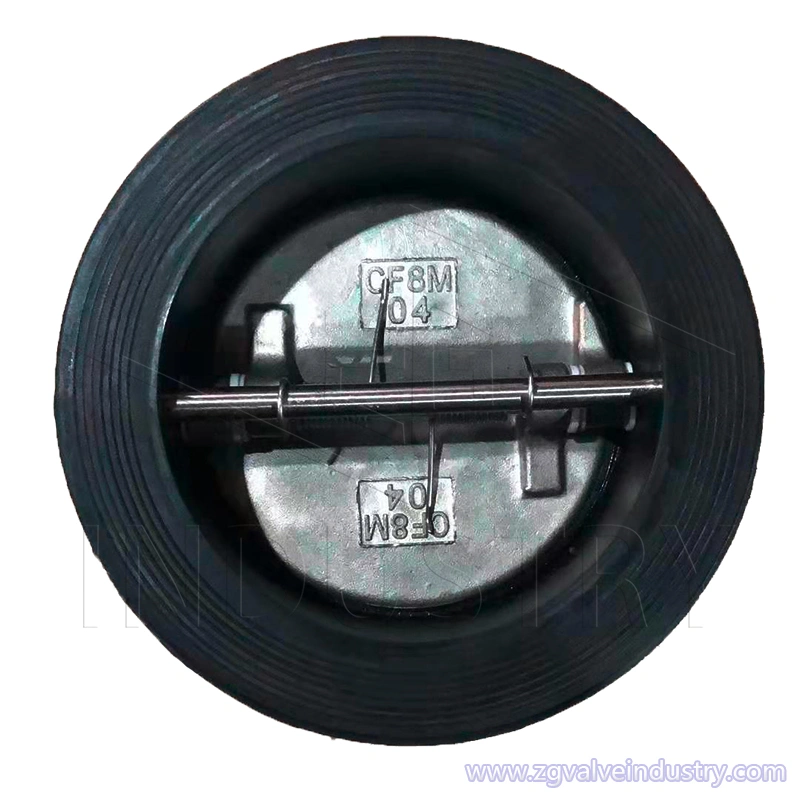

Ductile Iron ANSI Class150 DIN BS PN16 Wafer Type Double Plate Check Valve Body Covered with EPDM

ZG VALVE Ductile Iron ANSI Class150 DIN BS PN16 Wafer Type Double Plate Check Valve Body Covered with EPDM(DN15-DN600), CE pressure equipment Certification, multiple pressure tests,two-year warranty, a variety of materials are available.

Size Range: 2“-36”/DN50-DN900

Working Pressure: PN10/PN16/125LB/150LB

Body Materials: DI/WCB/304/316/304L/316L/2507/Bronze

Plate Materials: DI/WCB/304/316/304L/316L/2507/1.4529/Bronze

Seat & Body Cover: EPDM/NBR/Viton/PTFE

Spring Materials: Stainless Steel

Application for: Water,Oil &Gas

Shell Test:1.5 times

Seat Test:1.1 times

Payment: T/T, D/P or L/C

Lead Time:5-30 day

Description

Design Features:

Check Valves are the valves of stopping the fluid from backflow. The disc can be opened by the pressure of fluid. And then the fluid runs from the inlet to the outlet side. When the pressure of inlet is less than outlet, the disc can be cloased automatically and stop the fluid from backflow.

The swing check valve adopts a built-in rocker swing structure. All the opening and closing parts of the valve are installed inside the valve body and do not penetrate the valve body. Except for the sealing gasket and sealing ring at the middle flange, the whole There is no leakage point, preventing the possibility of valve leakage. The swing arm of the swing check valve adopts a spherical connection structure at the connection between the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom within the range of 360 degrees, and there is an appropriate micro position compensation.

It is suitable for clean media, not for media containing solid particles and high viscosity.


Wafer Swing Check Valve Features:

1. The structure length is short, and its structure length is only 1/4~1/8 of the traditional flange check valve;

2. Small size and light weight, its weight is only 1/4~1/20 of the traditional flange check valve;

3. The valve flap closes quickly and the water hammer pressure is small;

4. Both horizontal pipes and vertical pipes can be used, and the installation is convenient;

5. The flow channel is unobstructed and the fluid resistance is small;

6. Sensitive action and good sealing performance;

7. The valve disc has short stroke and small closing impact;

8. The overall structure, simple and compact, beautiful appearance;

9. Long service life and high reliability.


Field of Application:

Size Range: 2“-36”/DN50-DN900

Working Temperature: ≤120°C

Allowable Operating Pressure: PN10/PN16/125LB/150LB

Check Valve for use inpetrochemical industry, Chemical,Fiber Textiles, plastic, paper making, power industry, steel, rubber and gas systems.


Technical Specification:

1. Face to Face Dimension EN558-1

2. End Flange Dimension ANSI/DIN/BS


包胶蝶止 T ss.jpg

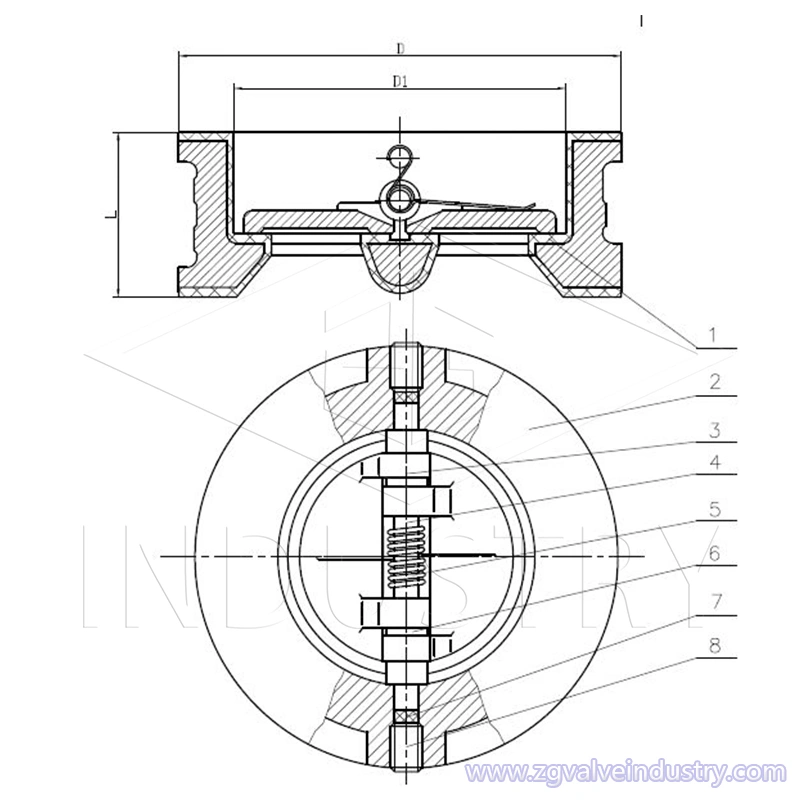

MATERIAL LIST



Material   Specification
NoPart NameMaterial
1Seat&Body CoverEPDM/NBR/Viton/PTFE
2BodyDI/WCB/304/316/304L/316L/2507/Bronze
3DiscDI/WCB/304/316/304L/316L/2507/1.4529/Bronze
4Stem304/316/304L/316L/2507/Bronze
5Spring304/316/304L/316L
6ShimPTFE
7SealEPDM/NBR/Viton/PTFE/Metal
8PlugWCB


包胶蝶止 T ss.jpg

Dimensions (mm)

DN PN10/PN16 JIS 10K 150LB
D D1 L L1 D D1 L D D1 L
50 107 65 46 33 101 65 63 102 65 63
65 127 80 51 34 121 80 72 121 80 72
80 142 94 70 44 131 94 78 133 94 78
100 162 117 70 48 156 117 78 172 117 78
125 192 145 78 50 187 145 91 194 145 91
150 218 170 82 52 217 170 103 219 170 103
200 273 224 96 58 267 224 132 276 224 132
250 328 265 122 78 330 265 151 337 265 151
300 378 310 124 74 375 310 186 406 310 186
350 438 360 133 79 420 360 190 448 360 190
400 489 410 147 88 483 410 197 511 410 197
450 535 450 159 98 535 450 209
500 594 505 159 100 593 505 225
600 720 624 185 124 697 624 228
700 825 720 230
800 940 825 245
